16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control

Name: 16mm Piezoelectric Ultrasonic Atomizing Transducer with 108113KHz Frequency and 35V DC for Humidity Control
Brand: TAIMI
Price: 1 USD

China 16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control wholesale

Life Time : 6000hours

Working Temperature : 1-50℃

Brand Name : TAIMI

Model Number : TM-16mm-108khz Piezoelectric Ultrasonic Atomizing Transducer

Certification : ISO,RoHS CE

Place of Origin : CHINA

MOQ : 1000PCS

Price : negotiable

Payment Terms : T/T

Supply Ability : 100000/month

Delivery Time : 10~20days

Packaging Details : safe packaging

Output Voltage : 3~5V DC

Diameter : 16mm

Working Depth : 40-90MM

Material : PZT-4 PZT-5 PZT-8

Surface Material : Glass Ceramic

Maximum Evaporation : 40~60ML/H

Power : 2W

Frequency : 108-113KHz

Contact Now

16mm Piezoelectric Ultrasonic Atomizing Transducer 3-5V DC For Humidity Control

Product Overview

Piezoelectric Ultrasonic Atomizing Transducer designed specifically for humidity control applications. This advanced transducer utilizes piezoelectric ceramic technology to create fine water mist for effective humidification.

Key Features

Produces negative ions and atomization simultaneously for sterilization and smoke deposition
Generates cold water mist for cooling and humidifying air
Enhances oxygen absorption and carbon dioxide emission capabilities
Provides therapeutic benefits for respiratory conditions and asthma
Replenishes skin moisture without high-temperature burns
Removes second-hand smoke, formaldehyde, carbon monoxide, and bacteria
Reduces nervous tension and fatigue while promoting relaxation

Technical Specifications

Parameter	Specification
Model Type	TM-16MM-108KHZ
Resonant Frequency (fr)	108kHz ± 3kHz
Resonant Resistance (Ro)	Maximum 150Ω
Capacitance (Cp)	3600pF ± 15%
Input Voltage	DC 3-5V
Maximum Input Power	1.5W
Maximum Voltage	60 Vp-p
Operating Temperature	-40℃ to 85℃

Construction Details

The piezoelectric ceramic surface features high-temperature sintering sealing glass glaze at 700-800°C, providing excellent acid and alkali resistance with a lifespan exceeding 5,000 hours. The atomizing film delivers stable performance with fine fog particles and substantial atomization capacity.

Product Images

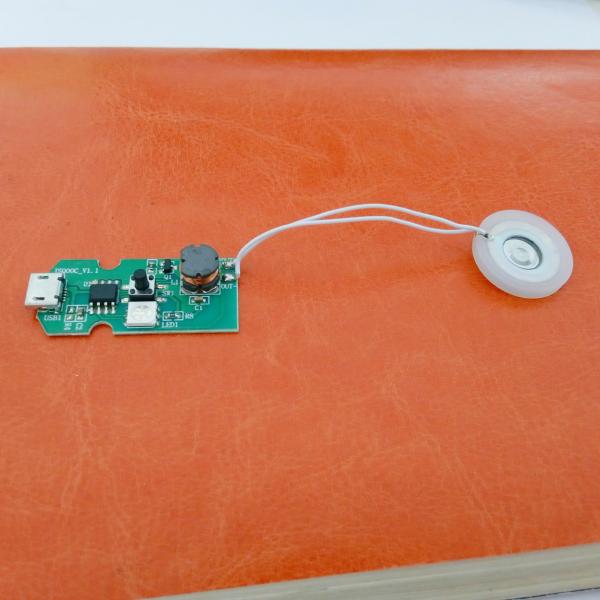

16mm Piezoelectric Ultrasonic Atomizing Transducer with 108-113KHz Frequency and 3-5V DC for Humidity Control

Customization Options: Hole size and quantity can be customized according to customer requirements. We provide complete product sets including PCB and support OEM/ODM services.

Packaging Information

500 pieces per inner box, 5000 pieces per outer carton. Gross weight: 10kg.

Storage Conditions

Standard storage temperature: -40℃ to 85℃
Avoid storage in environments with relative humidity greater than 75%
Do not store in corrosive gas environments

Frequently Asked Questions

Question	Answer
Response Time	All inquiries replied within 24 hours
Sample Availability	Samples available with freight charges only
Minimum Order Quantity	No MOQ limit - even 1 piece available
Delivery Time	Samples: 3 days; Production: 20-25 days
Payment Terms	T/T, Western Union, PayPal, L/C
Shipping Methods	Air (DHL, FedEx, UPS, TNT) and Sea shipping
Manufacturer Status	Direct manufacturer in China
OEM/ODM Support	Full customization services available
Technical Support	Complete technical assistance provided
